Ribbon Blender
Ribbon blenders are U shaped vessels with flat cover section on top and discharge valve at the bottom. It is used for uniform, homogenous and quick mixing of powders and semi-wet materials of different densities. The ribbons of the shell are designed in a such a way that the inner helix of the ribbons moves the product in one direction and the outer helix of the ribbon moves the material in opposite direction. The ribbon blender would also have an oil mixing arrangement.
| Model | Volume | Power | Approx Batch Size |
|---|---|---|---|
| GM-25 | 125 LITRE | 2 H.P. | 25 TO 40 KG |
| GM-50 | 250 LITRE | 3 H.P. | 50 TO 80 KG |
| GM-100 | 500 LITRE | 5 H.P. | 100 TO 150 KG |
| GM-150 | 750 LITRE | 5 H.P. | 150 TO 200 KG |
| GM-200 | 1000 LITRE | 7.5 H.P. | 200 TO 300 KG |
| GM-300 | 1500 LITRE | 10 H.P. | 300 TO 450 KG |
| GM-450 | 2000 LITRE | 15 H.P. | 450 TO 600 KG |
| GM-600 | 2500 LITRE | 20 H.P. | 600 TO 750 KG |
| GM-800 | 4000 LITRE | 30 H.P. | 800 TO 1200 KG |

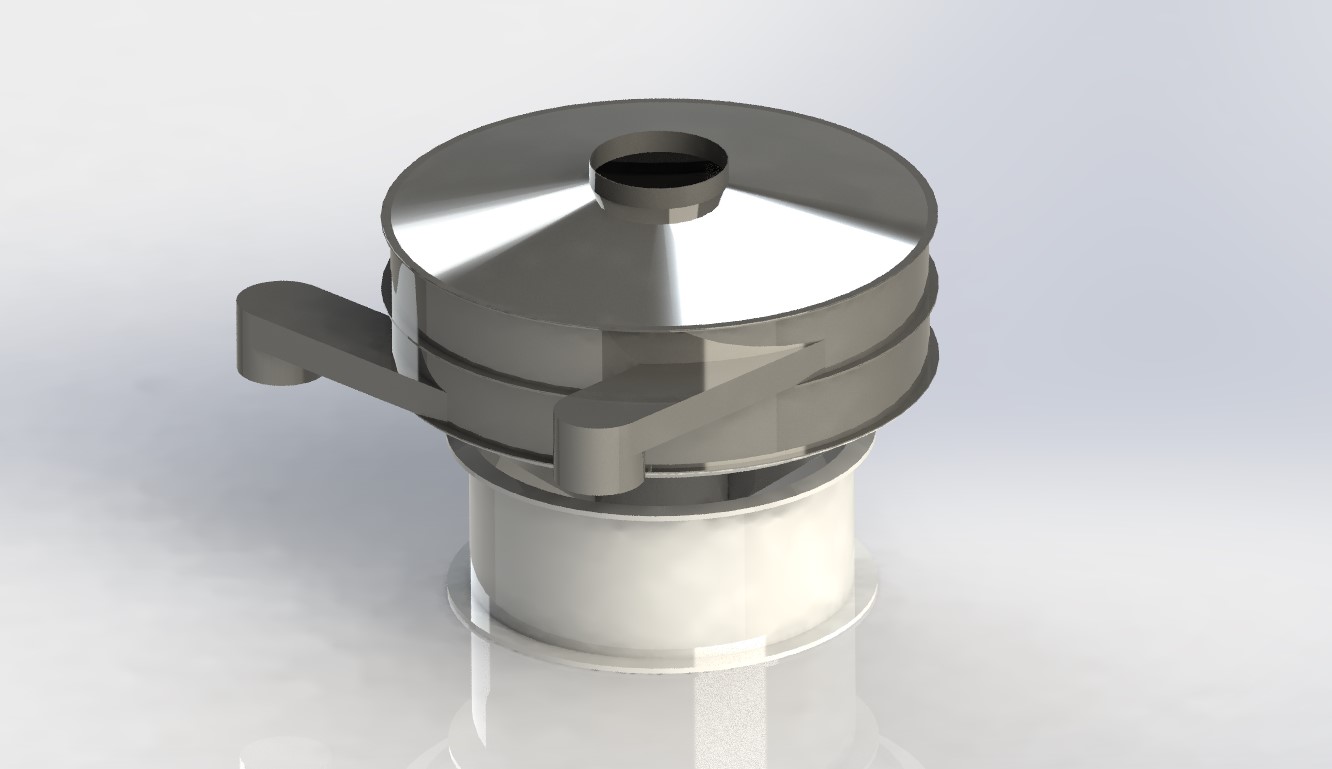

Vibro Sifter
The Vibro sifter is a compact machine used for grading of material which are generally difficult to segregate. The screen works on the gyratory motion using low powered motor. The vibro sifter is an enclosed structure that ensures dust free operation along with leakage proof system. It is a high capacity performance machine which uses minimum space.
| Model | Deck Size | Power |
|---|---|---|
| GVS-2.5 | 2.5 FT | 0.5 H.P. |
| GVS-3 | 3FT | 1 H.P. |
| GVS-4 | 4FT | 1.5 H.P. |
| GVS-5 | 5FT | 2 H.P. |
| GVS-6 | 6FT | 3 H.P. |
| GVS-8 | 8FT | 7.5 H.P. |
